Product Overview

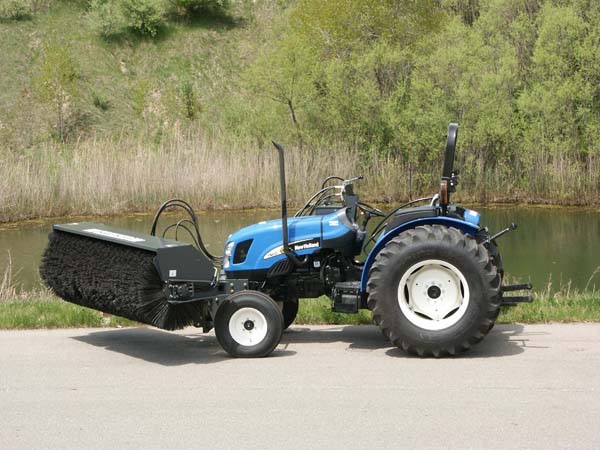

The Sweepster Utility Tractor Rear-Mount Angle Sweeper — Hydraulic Drive is a hydraulically driven three-point hitch broom for tractors with a 32” diameter brush. The Sweepster RLH is designed to run off the tractor hydraulics and can be used on both Cat 1 and 2 tractors. For tractors that do not have enough hydraulics, there is an optional 540 PTO pump package. This is a very good broom for construction, road, snow and general cleanup.
Common Carrier Machines:
AG loaders. Additional machine compatibility information is available upon request.
Features & Benefits
Applications
| Agriculture | Construction | Land Management |
Sweepster - Rear-Mount Angle Broom Technical Specifications
| Model | QC5 | QC6 | QC7 | QC8 | QC-9 |
|---|---|---|---|---|---|
| DM18 GPM Range | 20 – 36 | 20 – 36 | 20 – 36 | 20 – 36 | 20 – 36 |
| DM18 PSI Range | 2000 – 3500 | 2000 – 3500 | 2000 – 3500 | 2000 – 3500 | 2000 – 3500 |
| SM18 GPM Range | 10 – 18 | 10 – 18 | 10 – 18 | ||
| SM18 PSI Range | 2000 – 3500 | 2000 – 3500 | 2000 – 3500 | ||
| SM28 GPM Range | 12 – 25 | 12 – 25 | 12 – 25 | 12 – 25 | |
| SM28 PSI Range | 2000 – 3000 | 2000 – 3000 | 2000 – 3000 | 2000 – 3000 | |
| Width (in.) | 60 | 72 | 84 | 96 | 108 |
| Brush Diameter (in.) | 32 | 32 | 32 | 32 | 32 |
| Weight (Approximate) - (lbs) | 1090 | 1150 | 1210 | 1270 | 1270 |
